Seven segment display is a basic type of display which can display numbers from 0 to 9. The circuit for interfacing single 7 segment display is shown below.

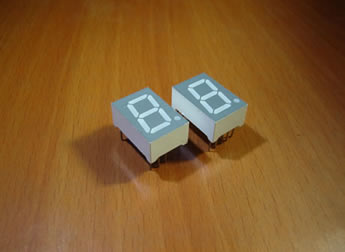

Driving a 7 segment display is as simple as flashing LEDs, but here we are flashing 7+1 LEDs. The 7 segment display module has 8 LEDs (7 segments to display number and one segment for decimal point or dot) arranged in a particular manner as shown in image below.
By driving (in the sense controlling ON and OFF conditions) these LEDs in various combinations, we can display the numbers 0 to 9. There are basically two types of 7 segment displays, they are common cathode and common anode. In common cathode, the cathodes of all the LED segments are connected together, we should apply a logic 1 or high input to a segment pin to light up that particular segment, and in common cathode the case is opposite. Table below shows the combinations of inputs to be applied to 7 segment display for digits 0 to 9.
For common cathode displays | ||
Digit | binary input value | hexadecimal input value |
0 | 11111100 | FC |
1 | 01100000 | 60 |
2 | 11011010 | DA |
3 | 11110010 | F2 |
4 | 01100110 | 66 |
5 | 10110110 | B6 |
6 | 10111110 | BE |
7 | 11100000 | E0 |
8 | 11111110 | FE |
9 | 11110110 | F6 |
For common anode displays | ||
Digit | binary input value | hexadecimal input value |
0 | 00000011 | 03 |
1 | 10011111 | 9F |
2 | 00100101 | 25 |
3 | 00001101 | 0D |
4 | 10011001 | 99 |
5 | 01001001 | 49 |
6 | 01000001 | 41 |
7 | 00011111 | 1F |
8 | 00000001 | 01 |
9 | 00001001 | 09 |
The images shown below are the photographs of 7 segment add-on board for my microcontroller board, I have included one 7 segment in the current version of my development board, so if you are using that circuit then you don't need an external 7 segment display board. Click on the image to enlarge.
The assembly language source code for interfacing 7 segment display is given below.
;************************************************* |
